Trouble In Programing An AT89C51 Microcontroller Using Arduino Uno Board As A Programmer

Asked by Greatman Mail mctongdube@gmail.com Location Zimbabwe

Hardware: AT89C51 Microcontroller, 12MHz Crystal Oscilator, 33pf Capacitors X 2, BC547 Transistor Wired On Pcb Software: Keil Microvision And Avr Studio

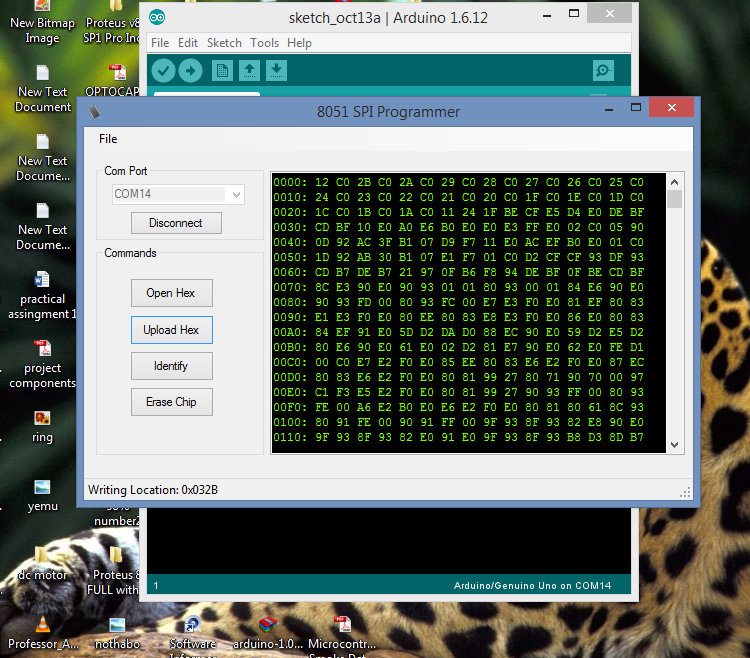

l have wired all the hardware components on pcb and l tried to burn my hex file to the microcontroller using arduino uno board as a programmer. l burnt my hex file using 8051 SPI programmer software to link it with arduino isp as a programmer.

Images

Program

 ORG 0
  LJMP START
  ORG 0050;
THIS IS SPEED CONTROL PROGRAM DT:20-03-2007 LCD PVPSIT;
                 P2.5 = ENABLE;
                 p2.6 = READ/WRITE;
       P2.7 = REG INS=0 /DATA=1;
       P1.4 =MOTOR;
       P1.5 =MOTOR;
       50H = DISP LOCATION ADD;
       51H = SPEED ON TIME;
       52H = SPEED OFF TIME;
       53H = SPEED SET VAL;
       54H = SPEED READ VAL
START:
        CLR P1.4
        CLR P1.
YXZ:    MOV 56H,#00H
        JB P1.1,UXD
        LCALL DEL1
        JB P1.1,YXZ
        MOV 56H,#01H
UXD:
       LCALL LCDINI
XX1:    LCALL SEC
        MOV DPTR, #03C0H
        LCALL TLINE
        MOV DPTR, #03D0H
        LCALL BLINE
        LCALL SSEC
      MOV DPTR, #03E0H
        LCALL TLINE
        MOV DPTR, #03F0H
        LCALL BLINE
        LCALL SSEC

        MOV 50H,#8BH
        MOV 51H,#7FH
        MOV 52H,#80H
        MOV 55H,#00H
        MOV 53H,#7FH
       LCALL SDI
       LCALL SEC
MMRR:
        MOV R0,#00H
Y1:
   LCALL DEL1
        JB P1.1,Y1
        LCALL INCR
     MOV 50H,#8BH
        CLR A
        MOV A,53H
        MOV 55H,A
        LCALL SDIS
        LCALL SEC
U1:
        JB P1.2,U
LCALL DEL1
     JB P1.2,U1
        LCALL DECR
     MOV 50H,#8BH
        CLR A
        MOV A,53H
        MOV 55H,A
        LCALL SDIS
        LCALL SEC
U2:
        JB P1.3,Y1
        LCALL DEL1
        JB P1.3,U2
TY1:
        JB P1.3,TY1
        LCALL DEL1

;************
       DB #32H
       DB #35H
       DB #34H
      ;------------------
       ;************
       DB #32H
       DB #35H
       DB #35H
